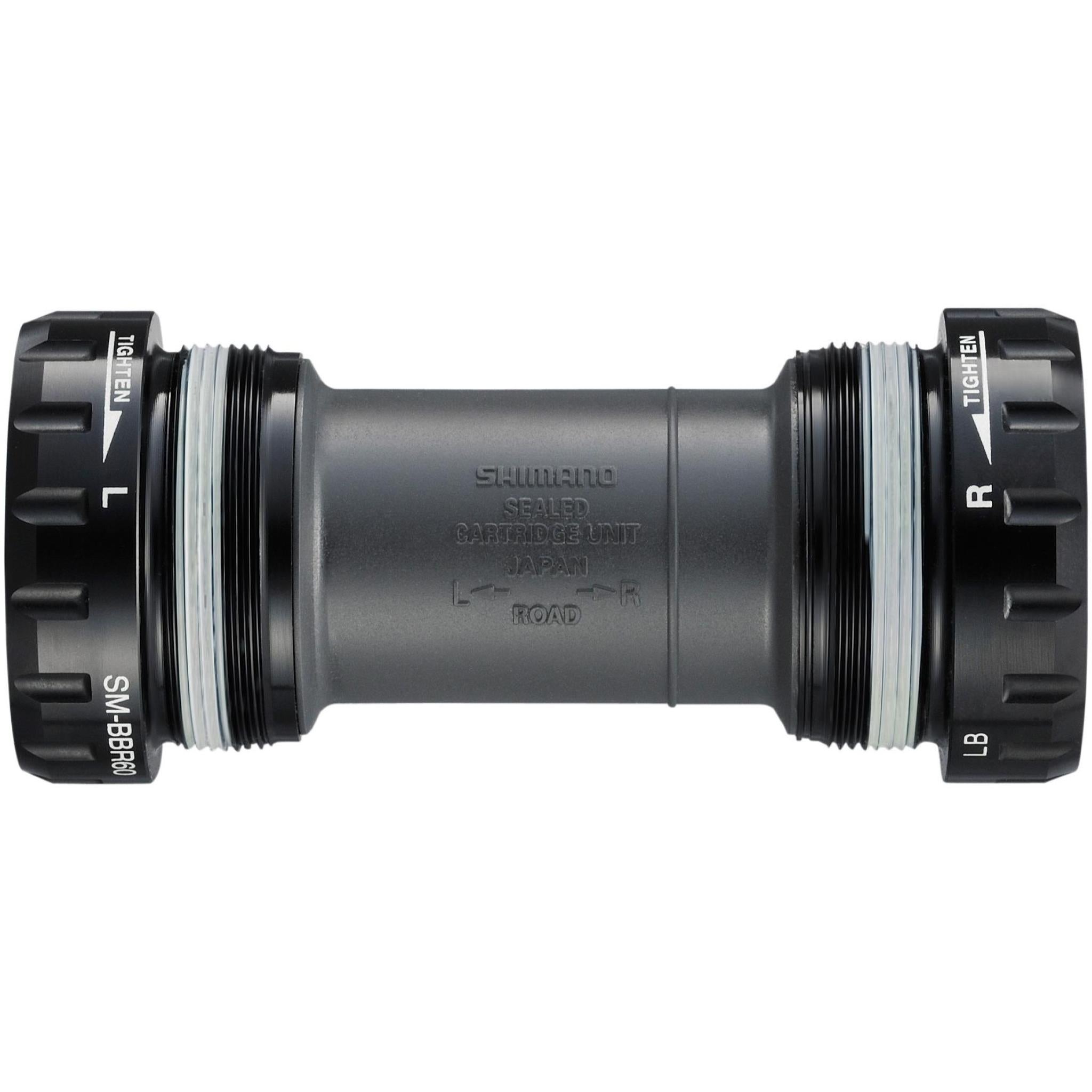

BB-R60 Ultegra - 105 bottom bracket, British Thread
Shimano

BB-R60 Ultegra - 105 bottom bracket, British Thread

£32.99
  • HollowTech II integrated bottom bracket uses a wider bearing placement and larger axle diameter for increased stiffness and efficiency
  • HollowTech II integrated bottom bracket seal design has minimal bearing interface ensuring smooth rolling and increased durability
  • Use TLFC37 or TLFC25 in conjunction with TLFC36 adaptor tool for installation and removal
  • For use with Ultegra - 105 - CX70 chainwheels
  • Axles Standard
    24mm
  • Bottom Bracket Type
    BSA Threaded
  • Colour
    Black
  • Discipline
    Road
  • Product Type
    Bottom Brackets

Causeway GR1 Geometry

Frame Geometry (mm)
 XS/S
S/M
M/L
L/XL
Frame Reach
A
 375
400
425
450
Frame Stack
B
 593
598
598
602.7
Head Angle
C
 69°
69°
69°
69°
Seat Tube Angle
D
 73°
73°
73°
73°
Seat Tube Length
E
 440
460
480
500
BB Drop
F
 70
70
70
70
Head Tube Length
G
 180
185
185
190
Top Tube Length (Effective)
H
 556.40
582.83
607.83
634.26
Wheelbase
I
 1051.57
1078.40
1103.40
1130.20
Chainstay Length
J
 430
430
430
430
Front Centre
K
 631.20
657.80
682.70
709.40
Axle to Crown
L
 398
398
398
398
Rake/Offset
M
 48
48
48
48
